Speed Stream 6520 Siemens Wireless ADSL Gateway 060R-N652-A05

****PLEASE READ THE DESCRIPTION BEFORE PLACING YOUR ORDERS****❕❕❕📢📢📢

⚠️Disclaimer: Product specifications, features, and compatibility information are provided based on available sources at the time of publication and may change or vary depending on the manufacturer or model version. We recommend checking with the manufacturer or reviewing the official datasheet for complete accuracy. We do not accept responsibility for any discrepancies or issues that result from relying on the provided information without independent confirmation.

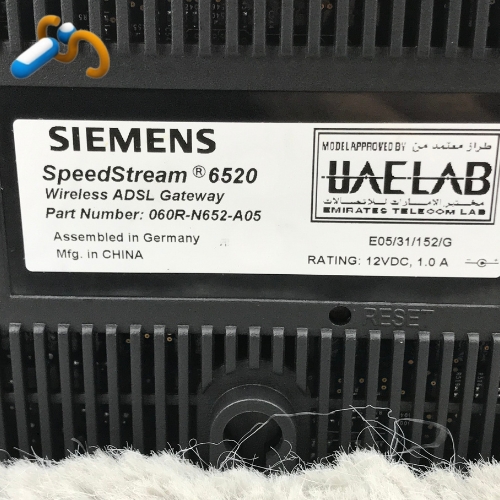

Product Name: Speed Stream 6520 Siemens Wireless ADSL Gateway 060R-N652-A05

Model No.: 060R-N652-A05

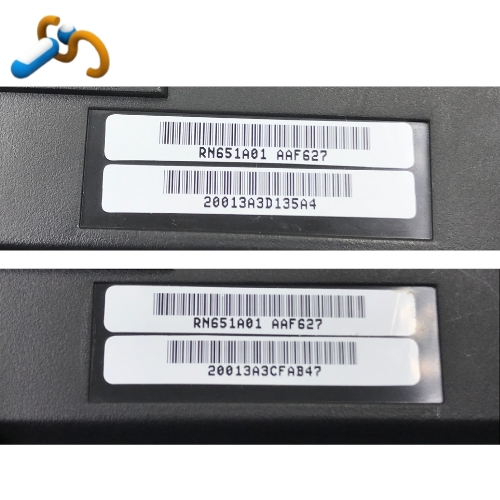

SN: * 20013A3D135A4 | * 20013A3CFAB47

🌐 Overview

A compact all-in-one ADSL2+ modem/router with built-in wireless (802.11b/g), ideal for home or small office use

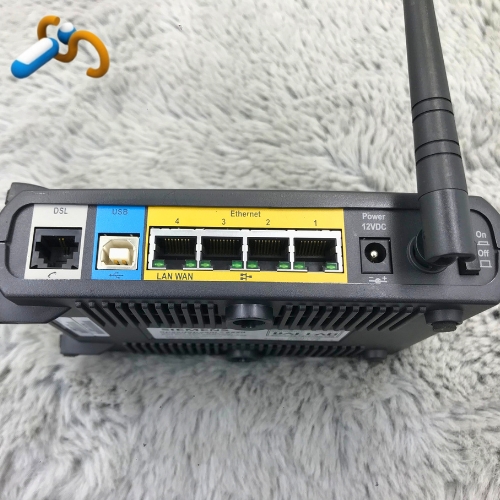

🔌 Connectivity & Ports

WAN: 1 × RJ-11 ADSL port (supports ADSL 1/2/2+ including Annex M)

LAN: 4 × 10/100 Mbps RJ‑45 ports with auto-MDI/MDIX

Wireless: Single external antenna (802.11b/, up to 54 Mbps)

USB 1.1 port – often used for firmware updates or printer/USB sharing .

🔒 Features & Security

Supports NAT routing, DHCP server, UPnP, DMZ, and port forwarding

Firewall: SPI-based with DoS protection, URL/content filtering, MAC filtering

Wireless Security: WEP (64/128-bit), WPA (TKIP), with support for future 802.1X deployments

📶 DSL & Routing Support

ADSL Compatibility: G.dmt (ADSL1), G.lite, ADSL2/2+, Annex M

Internet access modes: PPPoE, PPPoA, dynamic IP, bridge mode

VPN Passthrough: Supports multiple PPTP, L2TP, IPsec sessions

Routing protocols: RIP v1/v2, DynDNS, firewall rule backup/restore

⚙️ Hardware Specifications

Processor & Memory: ~160 MHz CPU, 16 MB RAM, 4 MB flash (rev. spec)

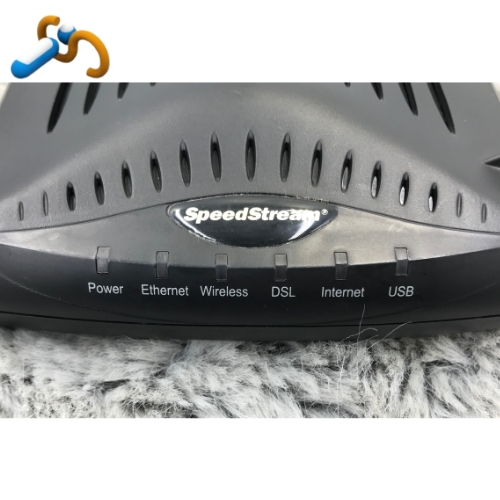

LED indicators: Power, DSL, Internet, WLAN, USB, LAN ports

Default LAN IP: 192.168.254.254; credentials likely admin/admin

Dimensions & Power: ~158×145×50 mm, 680 g, powered by external 12 V/1 A adapter

✅ Summary

Great for: Upgrading or repurposing existing ADSL2+ connections, simple home/office networking.

Not suitable for: Modern fiber/cable internet, high Wi-Fi demands, or advanced security features.

🔴 CONDITION: USED: The item was previously used and shows wear from consistent use, but it is fully operational, and functions as intended. The item may show some limited signs of wear with small scratches, dents, etc.

🔴 PACKAGE/PRODUCT INCLUSIONS:

For ‘Used-Conditions’ network components and devices, a complementary adaptor/adapter/power cable may or may not be included in the packaging depending on availability and stocks, otherwise stated in the description and photos/images.
