I.T.E Power Supply -SL Power and AULT Model No.: PW180KB4800F01

****PLEASE READ THE DESCRIPTION BEFORE PLACING YOUR ORDERS****❕❕❕📢📢📢

⚠️Disclaimer: Product specifications, features, and compatibility information are provided based on available sources at the time of publication and may change or vary depending on the manufacturer or model version. We recommend checking with the manufacturer or reviewing the official datasheet for complete accuracy. We do not accept responsibility for any discrepancies or issues that result from relying on the provided information without independent confirmation.

Product Name: I.T.E Power Supply -SL Power and AULT Model No.: PW180KB4800F01

⚡ Overview

The PW180KB4800F01 is a desktop-style, single-port PoE injector that takes AC mains input (100–250 VAC) and provides 48 V DC output over Ethernet, compliant with the IEEE 802.3af PoE standard, delivering up to 15.4 W of power

🛠️ Key Specifications

AC Input: 100-250V ~ 50-60 Hz, 0.5A

DC Output: 48 V DC, up to 0.35 A (15.4 W)

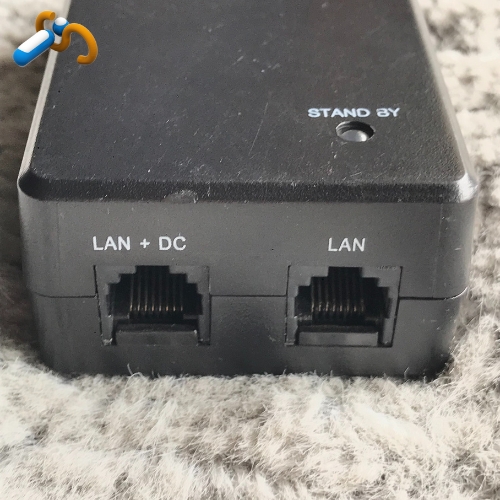

Connectors: Dual RJ‑45: one to data source, one injecting power/data to device

Standards: IEEE 802.3af compliant

Protection Features: Over-current, short-circuit, inrush limiting; primary fuse

Safety Approvals: UL/IEC/EN 60950-1, CE; EMI per EN55022/24, IEC61000

Dimensions & Weight:101 × 61.5 × 34.2 mm; ~170 g (5.9 oz)

Operating Temp: 0–40 °C

Efficiency: Level IV (≥75%) at ~1/3 load

LED Status Light: Amber: power/detection; Green: full-power mode

✅ Use Cases

Ideal for powering single PoE-enabled devices such as:

*Access points, IP phones, surveillance cameras, and IoT devices

*Especially useful when existing network switches lack PoE support

🔧 Summary

The PW180KB4800F01 is a compact, reliable, and certified 48 V PoE injector delivering up to 15.4 W over Ethernet—perfect for retrofitting non-PoE equipment in desktop or tight-space environments.

🔴 CONDITION: USED: The item was previously used and shows wear from consistent use, but it is fully operational, and functions as intended. The item may show some limited signs of wear with small scratches, dents, etc.

🔴 PACKAGE/PRODUCT INCLUSIONS:

For ‘Used-Conditions’ network components and devices, a complementary adaptor/adapter/power cable may or may not be included in the packaging depending on availability and stocks, otherwise stated in the description and photos/images.
