Golden Media Multibox DVB-S2/T2/C

****PLEASE READ THE DESCRIPTION BEFORE PLACING YOUR ORDERS****❕❕❕📢📢📢

⚠️Disclaimer: Product specifications, features, and compatibility information are provided based on available sources at the time of publication and may change or vary depending on the manufacturer or model version. We recommend checking with the manufacturer or reviewing the official datasheet for complete accuracy. We do not accept responsibility for any discrepancies or issues that result from relying on the provided information without independent confirmation.

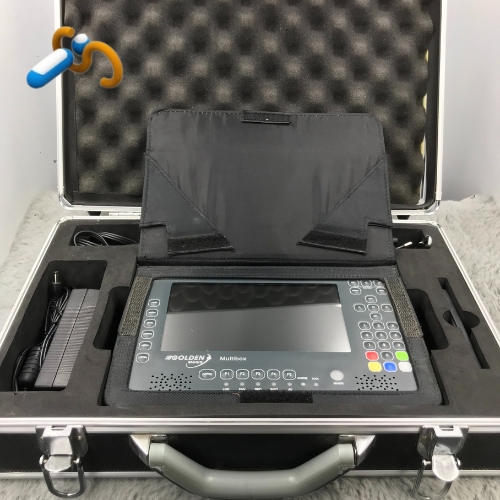

Product Name: Golden Media Multibox 2 Professional Spectrum Analyzer DVB-S2/T2/C

📡 Overview

A high-end, portable field meter combining three tuners—DVB-S/S2, DVB-T/T2, and DVB-C—on a large 7″ Full HD screen. It includes a spectrum analyzer, Conax smart card reader, Common Interface (CI), internet capabilities, and robust connectivity

🎯 Key Features & Capabilities

*Triple Tuner Support:

*Satellite (DVB-S/S2): 950‑2150 MHz, constellation demodulation QPSK/8PSK, DiSEqC 1.0/1.1/1.2

and USALS

*Terrestrial (DVB-T/T2): 47‑862 MHz, supports COFDM modes (2K/8K FFT) with QPSK,

16/64/256 QAM 

*Cable (DVB-C): 47‑862 MHz, 4/128/256 QAM 

*Full HD 7″ Display: 1080p resolution with detailed video preview 

*Spectrum Analyzer: Realtime analysis with save/load functions and constellation diagrams for

signal diagnostics 

*Signal Metrics: Displays signal strength, quality, MER, C/N, BER, bar graph, and audio/optical

indicators 

*Smart Card Support: CI slot + Conax card reader for decryption testing 

*Connectivity:

*HDMI 1.3 out, A/V in/out, RS‑232, USB 2.0 (host and mini), Ethernet 

*Supports Internet services (YouTube, weather, RSS, etc.) 

*Wi‑Fi via compatible USB dongle 

🔋 Power & Portability

*Power: 14.5 V DC, with internal 5500 mAh Li-ion battery delivering ~6–7 hours of usage 

*Size & Weight: 242 × 160 × 46 mm, around 2 kg 

✅ Use Cases

*Antenna alignment: Ideal for satellite dish pointing (USALS/DiSEqC), frequency scanning, and

signal verification.

*Field diagnostics: Portable tool for RF technicians to perform real-time spectrum and constellation

monitoring across satellite, terrestrial, and cable networks.

*Pay-TV testing: With CI & Conax reader, supports encrypted channel validation.

*Media playback & connection: HDMI/USB/MPEG playback, network streaming for content preview.

*Regarded as a premium solution for professionals requiring multifunctional RF analysis and signal

testing.

🔴 CONDITION: USED: The item was previously used and shows wear from consistent use, but it is fully operational, and functions as intended. The item may show some limited signs of wear with small scratches, dents, etc.

🔴 PACKAGE/PRODUCT INCLUSIONS:

For ‘Used-Conditions’ network components and devices, a complementary adaptor/adapter/power cable may or may not be included in the packaging depending on availability and stocks, otherwise stated in the description and photos/images.
