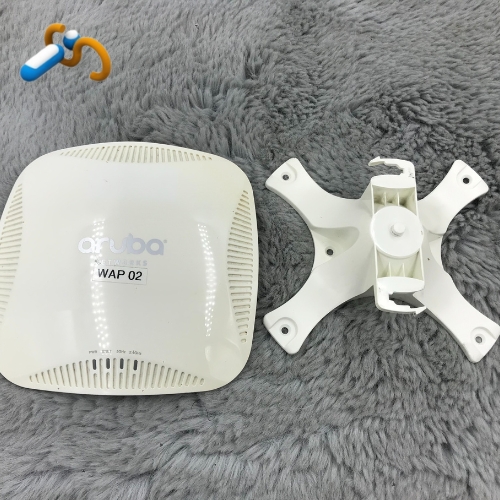

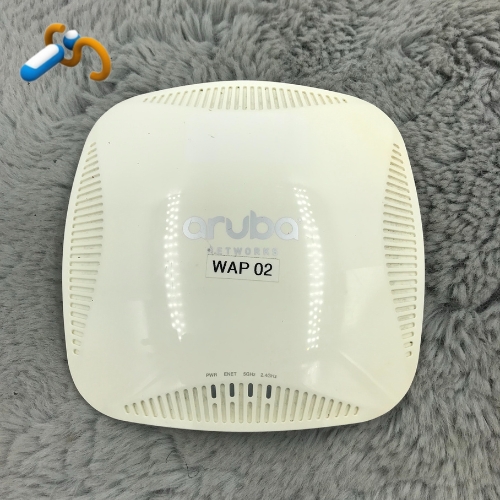

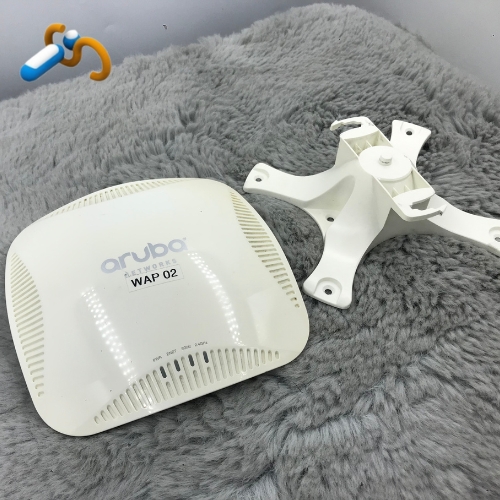

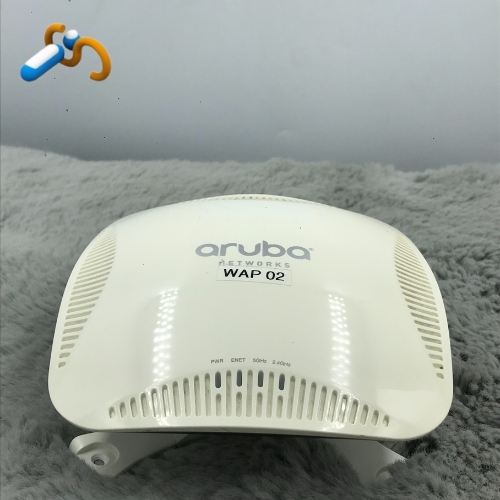

Aruba Networks WAP02 AP-205

****PLEASE READ THE DESCRIPTION BEFORE PLACING YOUR ORDERS****❕❕❕📢📢📢

⚠️Disclaimer: Product specifications, features, and compatibility information are provided based on available sources at the time of publication and may change or vary depending on the manufacturer or model version. We recommend checking with the manufacturer or reviewing the official datasheet for complete accuracy. We do not accept responsibility for any discrepancies or issues that result from relying on the provided information without independent confirmation.

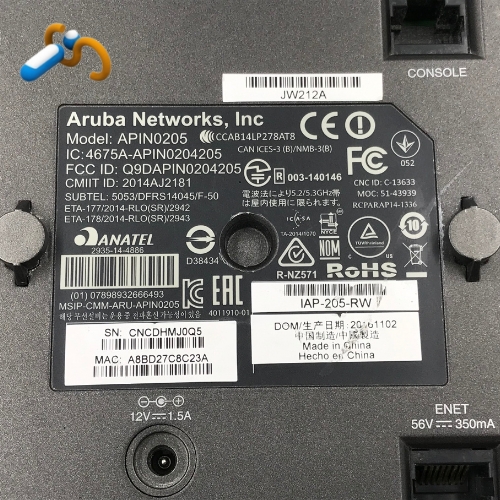

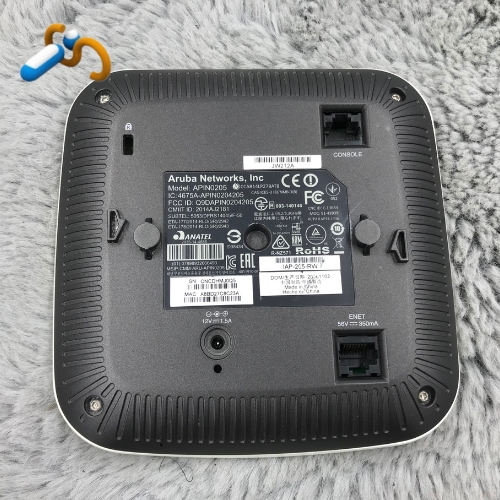

Product Name: Aruba Networks WAP02 AP-205

Serial Number: CNCDHMJ0Q5

Model Number: APIN0205

IC: 4675A-APIN0204205

FCC ID: Q9DAPIN0204025

📡 Overview

*Dual-band 2×2:2 802.11ac/n — supports up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, using four internal omni-directional downtilt antennas

*Deployable either as a controller-managed AP or as part of a controller-less Aruba Instant network

🔧 Performance & Antennas

*Internal antennas: 4 (gain approx. 4 dBi at 2.4 GHz / 6 dBi at 5 GHz) for balanced coverage.

*Supports MCS rates up to 867 Mbps with beamforming, LDPC, and STBC enhancements

*Handles up to 255 clients per radio and can broadcast 16 BSSIDs per band

🧠 Intelligent Features

*ClientMatch™ steers devices intelligently to the best AP to prevent “stickiness”

*Adaptive Radio Management (ARM) automates tuning for channel, power, airtime fairness, and

interference mitigation

*Advanced Cellular Coexistence (ACC) helps avoid interference from nearby cellular systems

🔒 Security & QoS

*Integrated wireless intrusion protection, rogue detection, spectrum analysis, and air monitoring

capabilities

*Supports AppRF for prioritizing business-critical apps (e.g., voice, video, Lync)

*Security chips include TPM and SecureJack for encrypted wired Ethernet tunneling

⚙️ Deployment & Power

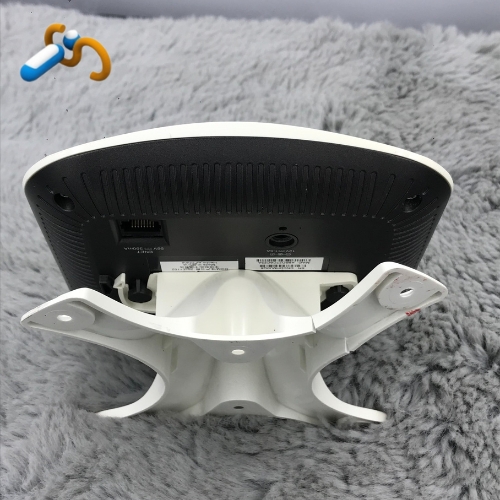

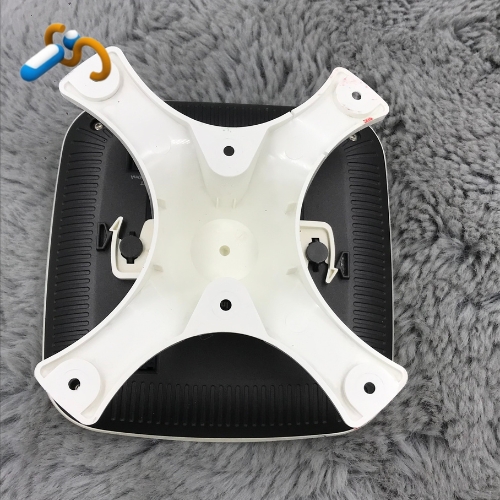

*Mounting: Wall or ceiling mount, standard gang box-compatible; sleek design fits dorms, offices,

hotels

*PoE support: 802.3af with energy-efficient Ethernet (802.3az), consumes ~12.5 W typical

*Ethernet: Single Gigabit LAN (PoE) plus a management console port, no extra data ports

📦 Physical & Lifecycle

*Size: ~15 × 15 × 4.2 cm and ~380 g

*Certified: UL2043 plenum, Wi‑Fi Certified 802.11a/b/g/n/ac

✅ Summary

Strengths: Ideal for medium-density deployments like offices, hotels, and classrooms, especially where wired drops may be limited. Features like ClientMatch, ARM, ACC, and AppRF ensure robust and reliable Wi-Fi performance.

🔴 CONDITION: USED: The item was previously used and shows wear from consistent use, but it is fully operational, and functions as intended. The item may show some limited signs of wear with small scratches, dents, etc.

🔴 PACKAGE/PRODUCT INCLUSIONS:

For ‘Used-Conditions’ network components and devices, a complementary adaptor/adapter/power cable may or may not be included in the packaging depending on availability and stocks, otherwise stated in the description and photos/images.
