Alloy Hydraulic Concealed Hinge with 6-Blade Transmission Arm Enlarged Mounting Base

****PLEASE READ THE DESCRIPTION BEFORE PLACING YOUR ORDERS****❕❕❕📢📢

Hydraulic Concealed Hinge

About this item:

ALLOY HYDRAULIC CYLINDER – With sealed hydraulic transmission, which is silent and non-destructive to your cabinet door, effectively buffer the opening and closing.
6-BLADE TRANSMISSION ARM – Smooth buffer resistance, making the opening and closing force more even; The more blades of the transmission arm, the stronger the buffer capacity.
ENLARGED MOUNTING BASE – With wide hole spacing to increase the pressure area; With an oval adjustable hole, ±2mm adjustment range; With thickened solid fixing rivets for reliable performance.
MATERIAL – Made of 201 stainless steel, with a certain anti-rust and anti-corrosion performance, suitable for use in indoor area that are not too humid, such as bedrooms, living rooms, cloakrooms, etc.
FIXED INSTALLATION – Fix the cabinet door and side panel with screws. If you need to remove the cabinet door, you need to remove the screws and hinges. Suitable for cabinets that do not require secondary disassembly, and the overall fixation is more firm than the detachable Type.

Specifications:
Installation Type: Fixed
Position: Cabinet door full overlays the side panel
Open Angle: 85 degrees
Material: 201 Stainless Steel
Applicable Environment: Indoor (non-humid environment)
Hinge Full Open Length: 114mm/4.49″
Hinge Full Close Length: 66mm/2.60″
Sinking Part Width: 65.5mm/ 2.58″
Sinking Part Hole Spacing: 47mm/1.85″
Sink Pre-drill Hole Diameter: 35mm/1.38″
Surface Mount Part Size: 59x47mm/2.32″x1.85″(L*W)
Surface Mount Part Hole Spacing: 32mm/1.26″

Package Includes: 1 Pair

Disclaimer:

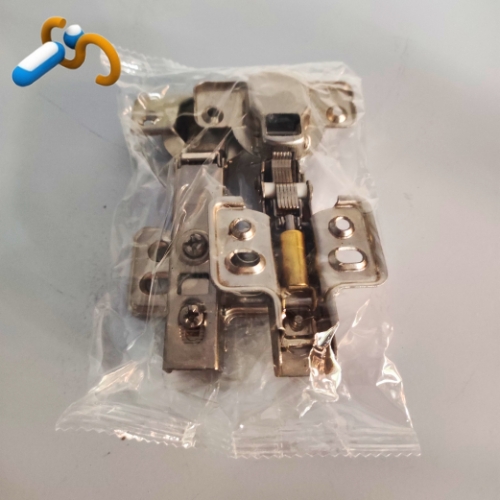

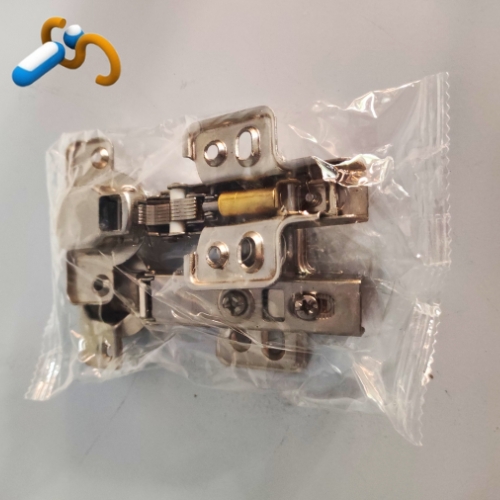

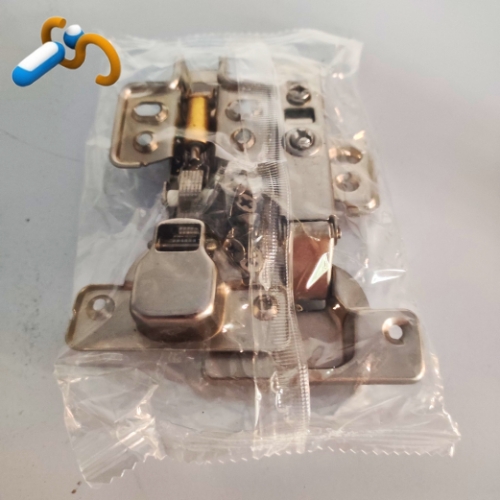

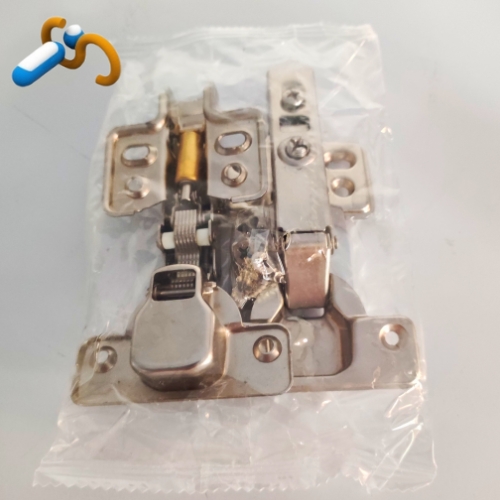

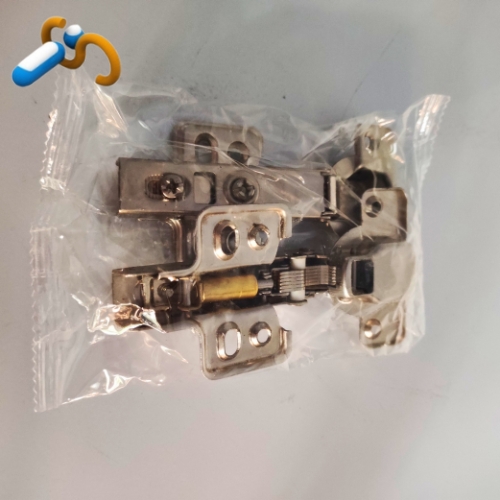

Additional image/s shown is/are for illustration purposes only. Please refer to the ‘Actual Photos’ for the physical condition of the item.
