18 AWG, UL 1015 Lead Wire_1 Strand And 105C-600V, PVC,

****PLEASE READ THE DESCRIPTION BEFORE PLACING YOUR ORDERS****❕❕❕📢📢

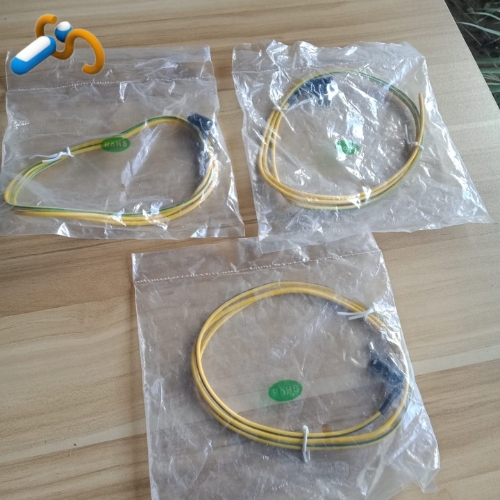

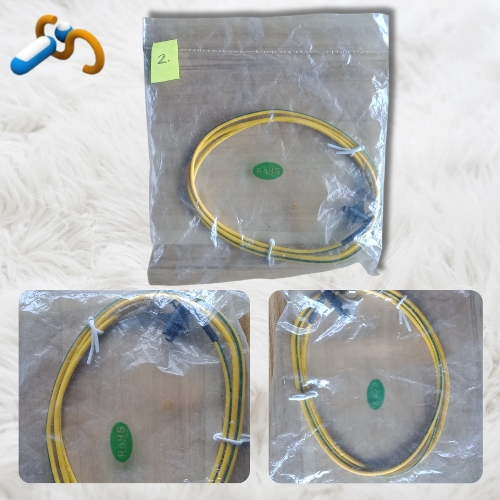

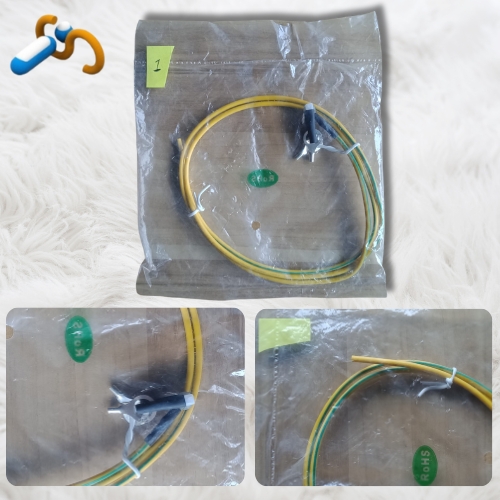

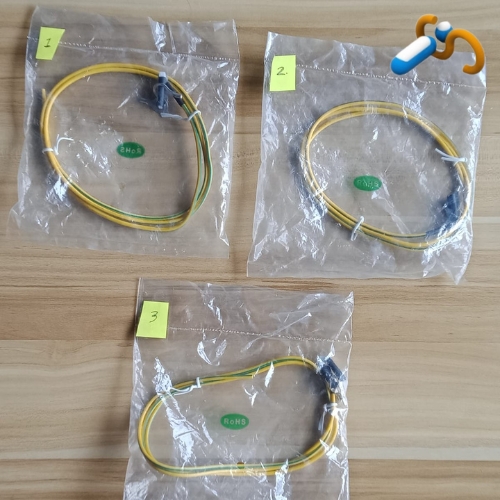

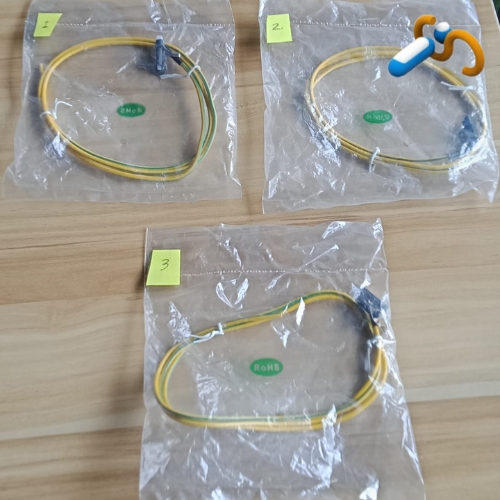

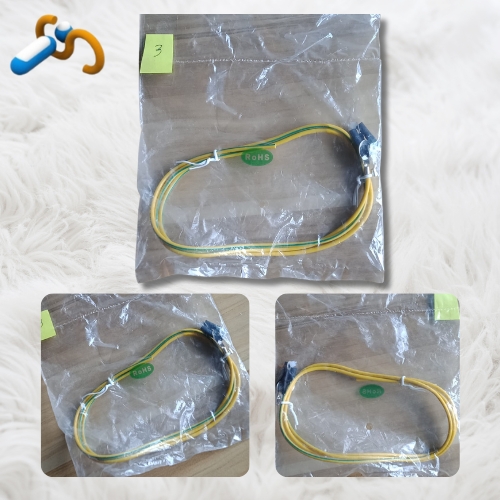

18 AWG, UL 1015 Lead Wire
1 Strand And 105C-600V, PVC,

Model Number:
* E322506-ICON01
* E322506-ICON02
* E322506-ICON03

* UL 1015 Wire Specifications
– Conductors: Solid and stranded bare copper or tinned copper wire
– Insulation: Extruded PVC with a minimum thickness of 30 mils
– Voltage rating: 600 volts AC, 750 volts DC
– AWG size permitted by UL 1015: 30 AWG to 2,000 MCM
– Maximum temperature rating dry: 105 C
– Maximum temperature rating in oil: Optional 60 C or 80 C
– Minimum temperature rating: Minus 40 C
– Flame resistant: Yes

* UL 1015 Wire Certifications
– UL 1015
– CSA Type TEW is rated for 600 volts and 105 C
– UL VW-1 Flame Test
– 16 AWG to 10 AWG only: Marine BC-5W2 and UL 1426
– Restriction of Hazardous Substances (RoHS)-compliant
